Product > Load cell indicator

Load cell signal conditioner|Load cell amplifier



Features:

Load cell amplifier FSC can work with all our load cells and torque sensors with mV/V configuration to deliver -5-5V / 0-3.3V / 0-5V / 0-10V / 0-20mA / 4-20mA output for easy signal processing and data acquisition.Power supply of signal conditioner FSC can be 12V DC or 24V DC depending on the ordering code,amplifier will then output 5V excitation for the connected sensor,calibration can be easily done through Zero and Span 2-point adjustment.Mating connector for sensor connection is included.

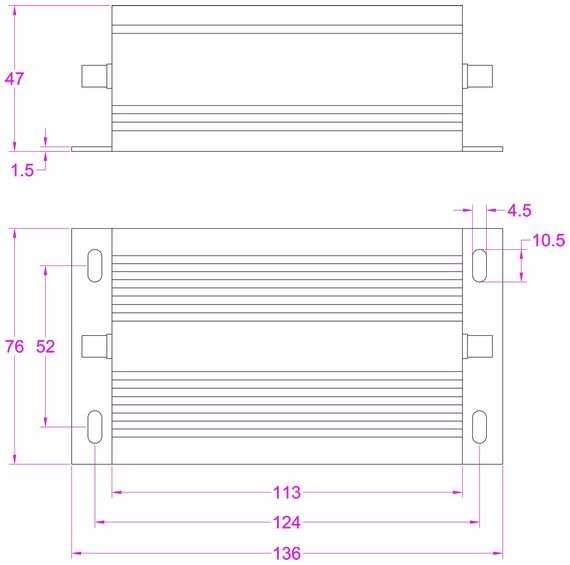

Dimensions:
