Product > Tension compression load cell

50KN 30KN 20KN 10KN 5KN 3KN S type load cell

Model:                        FS07

Capacity:                    2KN~50KN

Material:                     Alloy steel

Load direction:           Tension/compression

Rated output:              2.0±10%mV/V

Non-repeatability:      0.03% of R.O.

Excitation:                  5~15V

Other:                         Custom-design service

Features:

--Alloy steel construction

--Strain gauge technology,analog output,high accuracy

--Tension compression force measurement

--Widely used for hopper scales,testing machine.

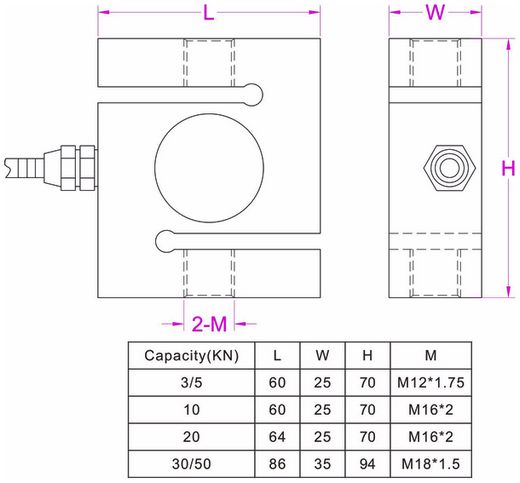

Dimensions:
Searching keywords:
S type load cell 500kg,s type load cell 20KN,s type load cell 10KN
