Product > Tension compression load cell

Tension compression rod end load cell force sensor

Model:                        FCL

Capacity:                    100N~50KN

Material:                     Stainless steel

Load direction:           Tension/Compression

Rated output:              1.5mV/V

Non-repeatability:      0.1% of R.O.

Excitation:                  3~15V

Other:                         Custom-design service

Features:

Rod end load cell FCL is made of stainless steel offering a wide measuring ranges from 100N up to 50kN to choose from. The unique design of cable outlet from the bottom of the sensor helps save the mounting space, force transducer FCL is very suitable for in-line force measurement in both tension and compression direction. Model FCL can be modified or customized if needed.

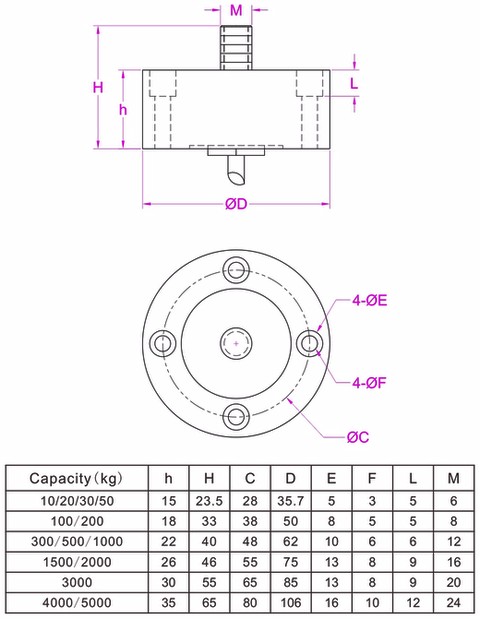

Dimensions:
Searching keywords:
Tension ompression force measurement,rod end force sensor,in-line load cell
