Product > Tension compression load cell

Rod end load cell tension compression load cell

Model:                        FC51

Capacity:                    1/2/5/10/20kN

Material:                     Stainless steel

Load direction:           Compression

Rated output:              2.0mV/V

Non-repeatability:      0.1% of R.O.

Excitation:                  3~15V

Other:                         Custom-design service

Features:

Rod end load cell force sensor FC51 is made of stainless steel based on strain gauge technology to deliver maximum 0.3% non-linearity of the rated output.It offers 1kN / 2kN / 5kN / 10kN / 20kN five different measuring ranges intended for both tension and compression force measurement.4xM5 threaded holes located on the bottom of the sensor can be used to mount different tools for different applications,you may find force transducer FC51 applicable for force measurement for inline actuators,hydraulic jacks,material testing machines,hand press and so on.

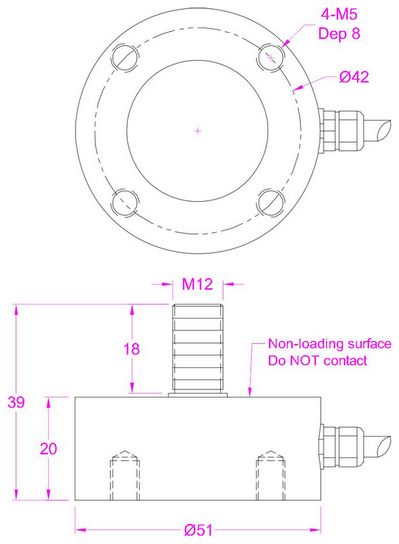

Dimensions:
Searching keywords:
Rod end load cell,rod end force sensor,20KN compression force sensor,5KN compression force transducer
