Press load cell 0-100kN Compression transducer

Model:                        FC25

Capacity:                    0~100kN

Material:                     Stainless steel

Load direction:           Compression

Rated output:              1.5mV/V

Non-repeatability:      0.2% of R.O.

Excitation:                  3~15V

Other:                         Custom-design service

Features:

Low profile press force load cell FC25 is made of stainless steel based on metal foil strain gauge technology intended for compression force measurement. Compressive type transducer FC25 offers 0-100N / 0-200N / 0-500N / 0-1kN / 0-2kN / 0-3kN / 0-5kN / 0-10kN / 0-20kN / 0-30kN / 0-50kN / 0-60kN / 0-100kN thirteen rated measuring ranges to choose from. You may find compression sensor FC25 applicable for force measurement of injection-molding machines and press machines, load distribution analysis, force overload protection, etc.. Besides the standard specifications,model FC25 can also be modified or customized for different applications.

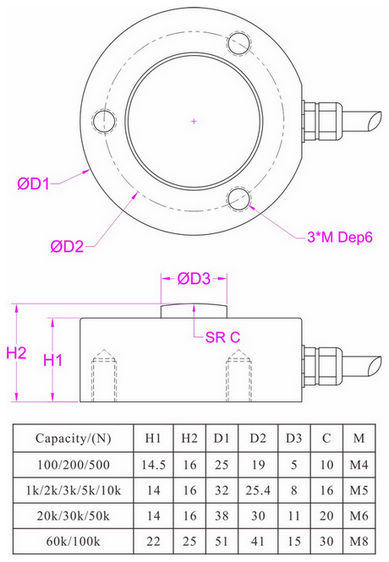

Dimensions:
