Thin button load cell with threaded holes

Model:                        FC20A

Capacity:                    5/10/20/50/100kg

Type:                         Low profile force sensor

Load direction:           Compression

Rated output:             1.5mV/V

Non-repeatability:      0.5% of R.O.

Excitation:                  3~10V

Other:                        Compact load cell

Features：

Miniature low profile button load cell FC20A is made of 17-4PH stainless steel utilizing strain gauge technology intended for compression force measurement. 4xM2.5 tapped holes located around the transducer can be used to install the sensor. Thin compression sensor FC20A is available in 5kgf / 10kgf / 20kgf / 50kgf / 100kgf five rated capacities, the compact design makes model FC20A suitable for force measuring applications with limited mounting space.

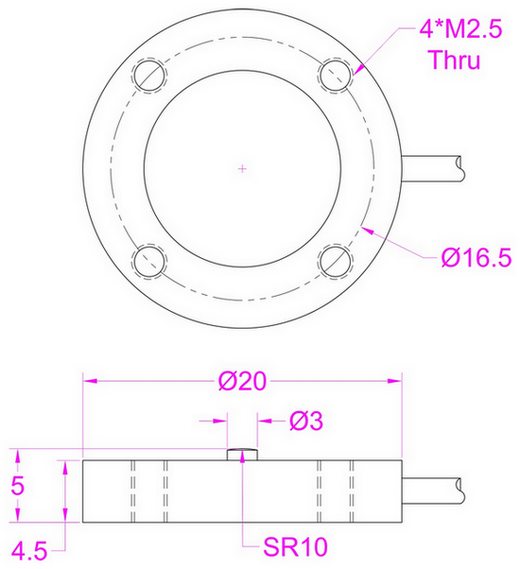

Dimensions：
