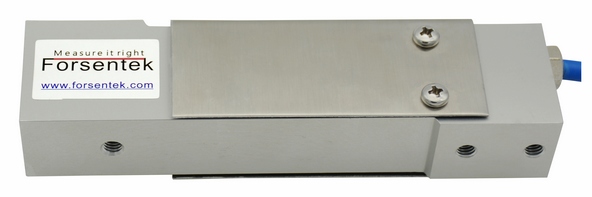

20kg 30kg 50kg 100kg 200kg Load cell sensor

Model:                        FNM

Capacity:                    15kg~200kg

Material:                     Aluminum alloy

Load direction:           Compression

Rated output:              2.0±5%mV/V

Non-repeatability:      0.01% of R.O.

Excitation:                  5~15V

Other:                         Custom-design service

Features:

weight sensor

--Aluminum contruction,steel cover protects the strain gauge area

--Strain gauge technology,6-wire connection,high accuracy

--Beam structure,easy to install

--Low off-center error,maximum platform size:400*400mm

--Widely used for platform scales,counting scales,weighing devices

--Competitive price

Dimensions:
Searching keywords:
Load cell sensor,weight transducer,weighing sensor,loadcell transducer
